5 Ton AMH MA Series

The right equipment. The right support. Fast.
In Stock / Ships Fast
Expert Support Available
Industrial-Grade Equipment
Freight Support Available
List Price $1,277.00 Your Cost $1,150.00
More Information
Manufacture Part Number MA050
Brand AMH
Estimated Ship Time 1-2 Business Days
Only %1 left
Add a new review
Please select required fields below in order to add item(s) to your cart:
Ready to Order?
Buy from Crane Depot with confidence.
Call Now for Expert Help
Estimated Ship Time: 1-2 Business Days

Shipping & Delivery

We make equipment shipping fast, reliable, and hassle-free.

  • Ships directly from authorized warehouse locations
  • Nationwide freight shipping available
  • Shipment tracking is provided after order dispatch
  • Expedited shipping options available upon request

Chainhoist coordinates every shipment carefully to ensure your equipment arrives safely, securely, and on time.

The AMH MA series hand chain hoist has a low headroom design. It has a lightweight and durable formed steel enclosure. Operation from side or even above permitting use for lifting or pulling. These have all been assembled and tested in America!

Features
  • Increased efficiency by additional pinion shaft bearing and close tolerances
  • Hook blocks are bolted allowing complete hook inspection
  • Lightweight and durable all steel construction with powder coated finish and plated frame components to resist corrosion
  • Premium USA-Made Grade 80 zinc plated alloy load chain
  • Hand chain opening is formed with a radius for smooth operation
  • Sealed ball bearings on the chain wheel maximize efficiency and serviceability
  • Self-adjusting double pawl disc type mechanical load brake insures positive load control
  • Double roller guide insures load chain tracking
  • Optional Overload Protection is a one directional clutch that will only slip in the lift direction
  • Meets: ASME/ANSI B3O.16, OSHA, NASA-STD-8719.9
  • ATEX rated II 3 GD c IIB 54¬¨‚à´ C X for limited use in Hazardous Environments
Product Resources
File Icon AMH MA Hand Chain Hoist Spec Sheet (241.30 kB)
Technical Specification
All
1t / 2200 lbs
2t / 4400 lbs
3t / 6600 lbs
4t / 8800 lbs
1/2t / 1100 lbs
5t / 11000 lbs
6t / 13200 lbs
8T / 16000 lbs
10t / 22000 lbs
1 1/2t / 3300 lbs
12t / 26400 lbs
15t / 33000 lbs
20t / 44000 lbs
25t / 55000 lbs
30t / 66000 lbs
7.5t / 16500 lbs
Base ModelCapacity (WLL)PartsChainABCDEEffort "P" @WLL""W ft. lift""W 10 ft. lift"
MA0051/2t / 1100 lbs1C5 x 15z13.65.40.930.835.7500.7424
MA0101t / 2200 lbs1C6 x 18z14.861.020.986.3630.9227
MA0151 1/2t / 3300 lbs1C7 x 21z17.46.81.281.27.2661.1239
MA0202t / 4400 lbs1C8 x 24z18.571.381.288741.343
MA0303t / 6600 lbs1C10 x 28z21.78.11.51.4210841.8877
MA0404t / 8800 lbs2C9 x 27z27.17.41.671.579.8622.8890
MA0505t / 11000 lbs2C9 x 27z27.17.41.671.579.8782.8890
MA0606t / 13200 lbs3C9 x 27z29.87.41.931.8116.9634.13135
MA0757.5t / 16500 lbs3C9 x 27z29.87.41.931.8116.9794.13135
MA0808T / 16000 lbs3C9 x 27z29.87.41.931.8116.9794.13135
MA10010t / 22000 lbs4C9 x 27z33.97.41.931.8118.1835.38173
MA12012t / 26400 lbs6C9 x 27z42.97.93.192.9528.372x28.26341
MA15015t / 33000 lbs6C9 x 27z42.97.93.192.9528.390x28.26341
MA20020t / 44000 lbs8C9 x 27z46.17.93.192.9533.598x210.76418
MA25025t / 55000 lbs10C9 x 27z47.213.93.192.9527.5107x213.26462
MA30030t / 66000 lbs12C10 x 28z57.117.83.192.9529.5108x222.56590
Base ModelCapacity (WLL)PartsChainABCDEEffort "P" @WLL""W ft. lift""W 10 ft. lift"
MA0101t / 2200 lbs1C6 x 18z14.861.020.986.3630.9227
Base ModelCapacity (WLL)PartsChainABCDEEffort "P" @WLL""W ft. lift""W 10 ft. lift"
MA0202t / 4400 lbs1C8 x 24z18.571.381.288741.343
Base ModelCapacity (WLL)PartsChainABCDEEffort "P" @WLL""W ft. lift""W 10 ft. lift"
MA0303t / 6600 lbs1C10 x 28z21.78.11.51.4210841.8877
Base ModelCapacity (WLL)PartsChainABCDEEffort "P" @WLL""W ft. lift""W 10 ft. lift"
MA0404t / 8800 lbs2C9 x 27z27.17.41.671.579.8622.8890
Base ModelCapacity (WLL)PartsChainABCDEEffort "P" @WLL""W ft. lift""W 10 ft. lift"
MA0051/2t / 1100 lbs1C5 x 15z13.65.40.930.835.7500.7424
Base ModelCapacity (WLL)PartsChainABCDEEffort "P" @WLL""W ft. lift""W 10 ft. lift"
MA0505t / 11000 lbs2C9 x 27z27.17.41.671.579.8782.8890
Base ModelCapacity (WLL)PartsChainABCDEEffort "P" @WLL""W ft. lift""W 10 ft. lift"
MA0606t / 13200 lbs3C9 x 27z29.87.41.931.8116.9634.13135
Base ModelCapacity (WLL)PartsChainABCDEEffort "P" @WLL""W ft. lift""W 10 ft. lift"
MA0808T / 16000 lbs3C9 x 27z29.87.41.931.8116.9794.13135
Base ModelCapacity (WLL)PartsChainABCDEEffort "P" @WLL""W ft. lift""W 10 ft. lift"
MA10010t / 22000 lbs4C9 x 27z33.97.41.931.8118.1835.38173
Base ModelCapacity (WLL)PartsChainABCDEEffort "P" @WLL""W ft. lift""W 10 ft. lift"
MA0151 1/2t / 3300 lbs1C7 x 21z17.46.81.281.27.2661.1239
Base ModelCapacity (WLL)PartsChainABCDEEffort "P" @WLL""W ft. lift""W 10 ft. lift"
MA12012t / 26400 lbs6C9 x 27z42.97.93.192.9528.372x28.26341
Base ModelCapacity (WLL)PartsChainABCDEEffort "P" @WLL""W ft. lift""W 10 ft. lift"
MA15015t / 33000 lbs6C9 x 27z42.97.93.192.9528.390x28.26341
Base ModelCapacity (WLL)PartsChainABCDEEffort "P" @WLL""W ft. lift""W 10 ft. lift"
MA20020t / 44000 lbs8C9 x 27z46.17.93.192.9533.598x210.76418
Base ModelCapacity (WLL)PartsChainABCDEEffort "P" @WLL""W ft. lift""W 10 ft. lift"
MA25025t / 55000 lbs10C9 x 27z47.213.93.192.9527.5107x213.26462
Base ModelCapacity (WLL)PartsChainABCDEEffort "P" @WLL""W ft. lift""W 10 ft. lift"
MA30030t / 66000 lbs12C10 x 28z57.117.83.192.9529.5108x222.56590
Base ModelCapacity (WLL)PartsChainABCDEEffort "P" @WLL""W ft. lift""W 10 ft. lift"
MA0757.5t / 16500 lbs3C9 x 27z29.87.41.931.8116.9794.13135
Reviews
Write Your Own Review
You're reviewing:5 Ton AMH MA Series

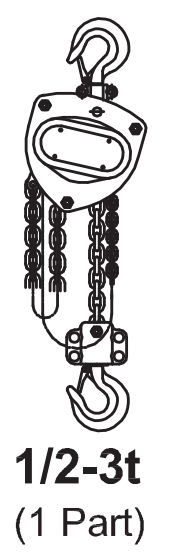

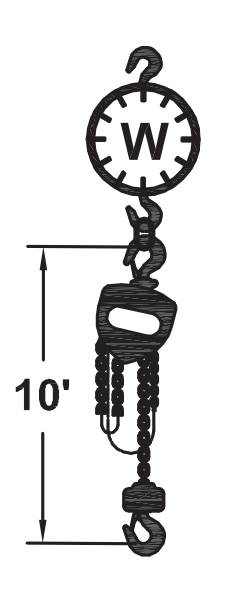

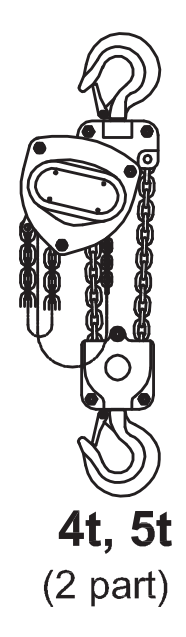

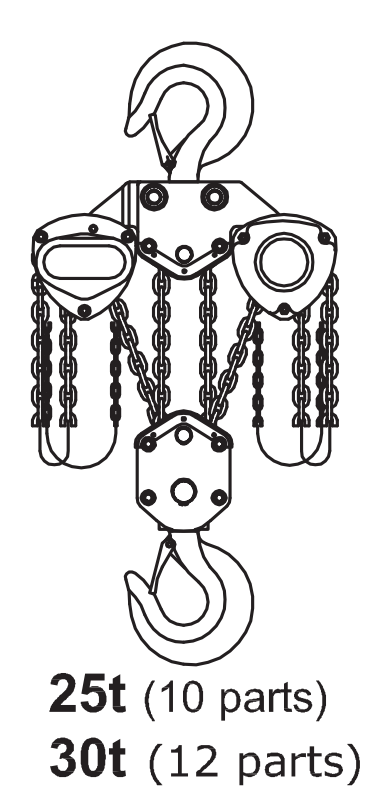

Dimension Guide
Dimension Dimension Dimension Dimension DimensionDimension.png" alt="Dimension"/> Dimension Dimension
