1/4 Ton Advantage L-Series Duty Floor Mounted Jib Crane
| Manufacture Part Number | L586 |
|---|---|
| Brand | Advantage |
| Estimated Ship Time | 2-3 Weeks |
Floor Mounted Jib Cranes have a heavy wall structural steel pipe mast and a reinforced large diameter base plate for minimal deflection and continuous alignment. Durable and long lasting overhead floor cranes feature a rolled steel I-beam section with tapered flange for smooth trolley travel. Safety end stops at both ends of boom limit trolley travel. Floor cranes bolt to concrete foundations.
Additional features and benefits include:
- Capacity up to 5 Tons
- Heights & spans to 25'
- I Beam Construction
- Heavy duty gusset & base plate
- Rigid box type head section
- Adjustable Lower roller cage

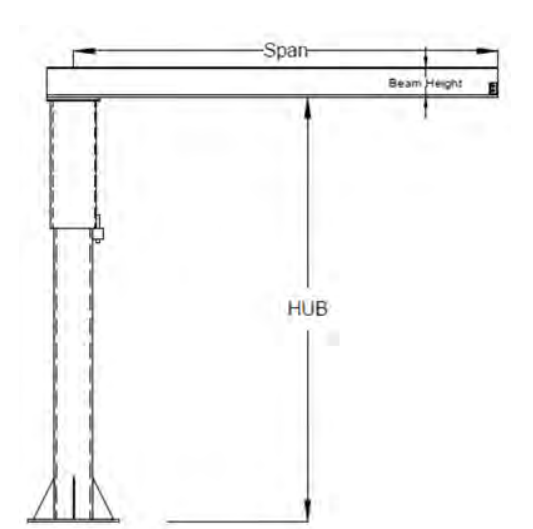

| Capacity (Pounds) | Model | Hub | Span | Beam Height | Flange Width | Base Diameter | Unit Weight |
|---|---|---|---|---|---|---|---|
| 500 | L586* | 8' | 6' | 6" | 4" | 26"* | 478# |
| 500 | L588* | 8' | 8' | 6" | 4" | 26"* | 510# |
| 500 | L5810* | 8' | 10' | 6" | 4" | 26"* | 542# |
| 500 | L5812* | 8' | 12' | 6" | 4" | 26"* | 669# |
| 500 | L5814 | 8' | 14' | 8" | 5-1/4" | 26" | 776# |
| 500 | L5816 | 8' | 16' | 8" | 5-1/4" | 26" | 818# |
| 500 | L5106* | 10' | 6' | 6" | 4" | 26"* | 516# |
| 500 | L5108* | 10' | 8' | 6" | 4" | 26"* | 548# |
| 500 | L51010* | 10' | 10' | 6" | 4" | 26"* | 580# |
| 500 | L51012* | 10' | 12' | 6" | 4" | 26"* | 713# |
| 500 | L51014 | 10' | 14' | 8" | 5-1/4" | 26" | 820# |
| 500 | L51016 | 10' | 16' | 8" | 5-1/4" | 26" | 862# |
| 500 | L5126* | 12' | 6' | 6" | 4" | 26"* | 544# |
| 500 | L5128* | 12' | 8' | 6" | 4" | 26"* | 586# |
| 500 | L51210* | 12' | 10' | 6" | 4" | 26"* | 618# |
| 500 | L51212* | 12' | 12' | 6" | 4" | 26"* | 758# |
| 500 | L51214 | 12' | 14' | 8" | 5-1/4" | 26" | 865# |
| 500 | L51216 | 12' | 16' | 8" | 5-1/4" | 26" | 907# |
Q1: What is the lifting capacity range for the Advantage L-Series Floor Mounted Jib Crane, and can the 1/4 Ton model be upgraded later?
The L-Series line supports capacities up to 5 tons, with spans and heights available up to 25ft. If your facility's lifting demands grow over time, procurement teams should evaluate a higher-capacity model at the point of initial purchase rather than retrofitting later.
Q2: What type of foundation is required to install the 1/4 Ton Advantage L-Series Floor Mounted Jib Crane?
The crane bolts to a concrete foundation. Before installation, confirm that the concrete foundation, anchor bolts, and site conditions are suitable for the selected crane configuration. Optional T-style anchor bolt kits and bolt pattern templates are available to help support accurate installation.
Q3: Does the L-Series Floor Mounted Jib Crane support smooth trolley travel, and what beam construction is used?
Yes, the crane features a rolled steel I-beam boom with a tapered flange specifically engineered for smooth trolley travel. Safety end stops at both ends of the boom prevent the trolley from rolling off, ensuring safe and controlled hoist movement during daily operations.
Q4: What optional accessories are available for the 1/4 Ton L-Series Jib Crane to improve operational control and safety?
Available options include a T-style anchor bolt kit, bolt pattern template, rotation stops, and collector rings. These options can help support installation, controlled boom rotation, and power delivery depending on the application.
Q5: What is the lead time for the 1/4 Ton Advantage L-Series Floor Mounted Jib Crane, and are financing options available for businesses?
The estimated ship ping time is 2–3 weeks from the order confirmation. Crane Depot offers flexible business financing plans, enabling procurement teams and facility managers to acquire the equipment without significant upfront capital investment. Contact Crane Depot to discuss available financing terms.
