1/4 Ton Harrington 85 FPM TCL Series Lube Free With Pendant Cord
The right equipment. The right support. Fast.
In Stock / Ships Fast
Expert Support Available
Industrial-Grade Equipment
Freight Support Available
List Price
$7,384.00
Your Cost
$5,903.00
| Manufacture Part Number | TCL250P |
|---|---|
| Brand | Harrington |
| Estimated Ship Time | Call for Lead time |
Only %1 left
Estimated Ship Time:
Call for Lead time
Harrington's TCL Series lube free air hoists are able to operate without air supply lubrication which leaves the surrounding environment free of oil mist from the air exhaust. Our TCL series hoists are recommended for use in any area where oil mist cannot be tolerated such as in food, chemical or pharmaceutical industries.
- Capacities 1/4 through 6 Ton
- Lubrication free for applications where a clean environment is needed
- Unlimited duty cycle for continuous operation
- Spring-loaded multi-vane motor design for very fine feathering control
- Extremely fast lifting when speed is critical
Technical Specification
All
1
3
6
1/2
1/4
| Cap. (Tons) | Product Code | Standard Lift (ft) | Push Button Hose L (ft) | Up/Down Speeds (ft/min @ 90 psi) No Load | Up/Down Speeds (ft/min @ 90 psi) Full Load | Up/Down Air Consumption Rates (cubic ft/min @ 90 psi) No Load | Up/Down Air Consumption Rates (cubic ft/min @ 90 psi) Full Load | Load Chain Diameter (mm) x Chain Fall Lines | Net Weight (lbs) | Weight for Additional One Foot of Lift (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|
| 1/4 | TCL250P | 10 | 8.2 | 151 / 105 | 85 / 144 | 64 / 57 | 57 / 64 | 6.3 x 1 | 46 | 0.6 |
| 1/2 | TCL500P | 10 | 8.2 | 79 / 53 | 43 / 79 | 64 / 57 | 57 / 64 | 6.3 x 1 | 46 | 0.6 |
| 1 | TCL1000P2 | 10 | 8.2 | 39 / 26 | 21 / 39 | 64 / 57 | 57 / 64 | 6.3 x 2 | 60 | 1.2 |
| 3 | TCL3000P | 10 | 8.6 | 24 / 14 | 10 / 22 | 131 / 124 | 106 / 141 | 12.5 x 1 | 225 | 2.3 |
| 6 | TCL6000P2 | 10 | 8.6 | 12 / 7.2 | 4.9 / 11 | 131 / 124 | 106 / 141 | 12.5 x 2 | 295 | 4.6 |
| Cap. (Tons) | Product Code | Standard Lift (ft) | Push Button Hose L (ft) | Up/Down Speeds (ft/min @ 90 psi) No Load | Up/Down Speeds (ft/min @ 90 psi) Full Load | Up/Down Air Consumption Rates (cubic ft/min @ 90 psi) No Load | Up/Down Air Consumption Rates (cubic ft/min @ 90 psi) Full Load | Load Chain Diameter (mm) x Chain Fall Lines | Net Weight (lbs) | Weight for Additional One Foot of Lift (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | TCL1000P2 | 10 | 8.2 | 39 / 26 | 21 / 39 | 64 / 57 | 57 / 64 | 6.3 x 2 | 60 | 1.2 |
| Cap. (Tons) | Product Code | Standard Lift (ft) | Push Button Hose L (ft) | Up/Down Speeds (ft/min @ 90 psi) No Load | Up/Down Speeds (ft/min @ 90 psi) Full Load | Up/Down Air Consumption Rates (cubic ft/min @ 90 psi) No Load | Up/Down Air Consumption Rates (cubic ft/min @ 90 psi) Full Load | Load Chain Diameter (mm) x Chain Fall Lines | Net Weight (lbs) | Weight for Additional One Foot of Lift (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|
| 3 | TCL3000P | 10 | 8.6 | 24 / 14 | 10 / 22 | 131 / 124 | 106 / 141 | 12.5 x 1 | 225 | 2.3 |
| Cap. (Tons) | Product Code | Standard Lift (ft) | Push Button Hose L (ft) | Up/Down Speeds (ft/min @ 90 psi) No Load | Up/Down Speeds (ft/min @ 90 psi) Full Load | Up/Down Air Consumption Rates (cubic ft/min @ 90 psi) No Load | Up/Down Air Consumption Rates (cubic ft/min @ 90 psi) Full Load | Load Chain Diameter (mm) x Chain Fall Lines | Net Weight (lbs) | Weight for Additional One Foot of Lift (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|
| 6 | TCL6000P2 | 10 | 8.6 | 12 / 7.2 | 4.9 / 11 | 131 / 124 | 106 / 141 | 12.5 x 2 | 295 | 4.6 |
| Cap. (Tons) | Product Code | Standard Lift (ft) | Push Button Hose L (ft) | Up/Down Speeds (ft/min @ 90 psi) No Load | Up/Down Speeds (ft/min @ 90 psi) Full Load | Up/Down Air Consumption Rates (cubic ft/min @ 90 psi) No Load | Up/Down Air Consumption Rates (cubic ft/min @ 90 psi) Full Load | Load Chain Diameter (mm) x Chain Fall Lines | Net Weight (lbs) | Weight for Additional One Foot of Lift (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|
| 1/2 | TCL500P | 10 | 8.2 | 79 / 53 | 43 / 79 | 64 / 57 | 57 / 64 | 6.3 x 1 | 46 | 0.6 |
| Cap. (Tons) | Product Code | Standard Lift (ft) | Push Button Hose L (ft) | Up/Down Speeds (ft/min @ 90 psi) No Load | Up/Down Speeds (ft/min @ 90 psi) Full Load | Up/Down Air Consumption Rates (cubic ft/min @ 90 psi) No Load | Up/Down Air Consumption Rates (cubic ft/min @ 90 psi) Full Load | Load Chain Diameter (mm) x Chain Fall Lines | Net Weight (lbs) | Weight for Additional One Foot of Lift (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|
| 1/4 | TCL250P | 10 | 8.2 | 151 / 105 | 85 / 144 | 64 / 57 | 57 / 64 | 6.3 x 1 | 46 | 0.6 |
Reviews
Write Your Own Review

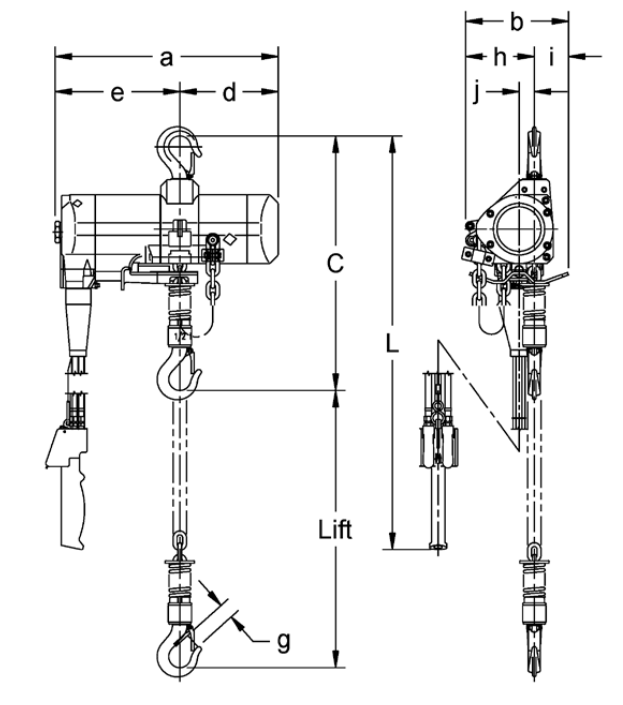

Dimension Guide
