Foundationless floor mounted jib cranes do not require a pre-poured foundation. The FL-FAR Series can be bolted to almost any existing concrete surface and are great in open areas where they can serve several work stations.
Existing concrete must be a minimum of 6" thick reinforced with a minimum 3,000 psi ( 5 bag mix), soil pressure must support 2500 psi.
Concrete in and around the area (6' x 6') of the base plate must be free of cracks and must appear in good condition.

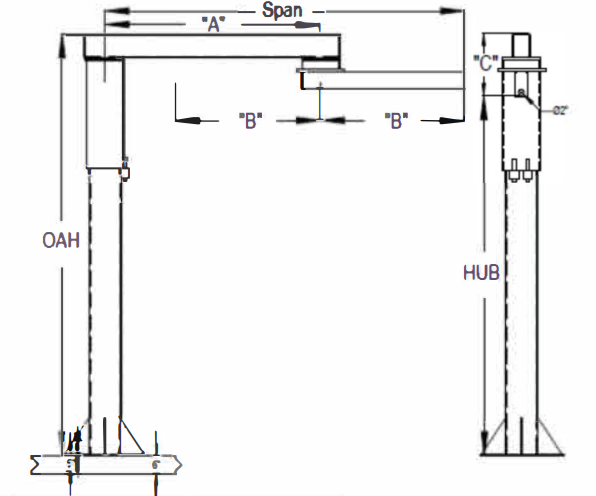

All Units have 26" BD & 22" bolt circle 6 holes 1-1/4" Diameter
All Foundations should be checked by a Structural Engineer
CONSULT OUR SALES TEAM FOR TAG LINE KITS, OUTDOOR APPLICATIONS, HOISTS, & TROLLEYS
