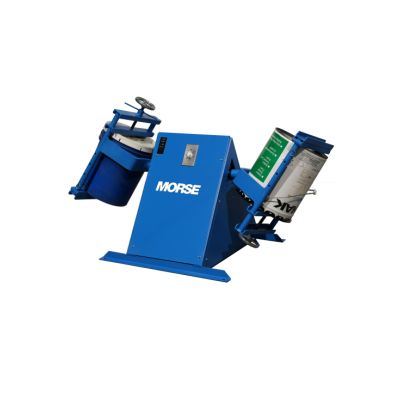

5 Gal. Single or Double Can Tumbler - Air Motor- PailPRO
The right equipment. The right support. Fast.
In Stock / Ships Fast
Expert Support Available
Industrial-Grade Equipment
Freight Support Available
List Price
$2,266.00
Your Cost
$2,039.00
| Manufacture Part Number | 2-305-A |
|---|---|
| Brand | Morse |
| Estimated Ship Time | 5-7 Business Days |
Estimated Ship Time:
5-7 Business Days
Morse Can Tumblers provide aggressive corner-over-corner mixing action. Mix products inside your sealed cans or pails with these can rotators to reduce hazards and save clean-up. Use your pail and can mixer to blend the contents of closed 1 to 5 gallon pails or cans (4 to 19 liter pails or cans). (Options available to tumble larger pails or cans. Please call for pricing.)
- Morse 5-Gallon Can Tumblers mix or agitate small batches quickly and economically
- Re-homogenize settled ingredients
- Use as pail or pail or bucket mixer to blend liquid or dry materials
- Tumble pails of parts with media to deburr or polish them
- These pail and pail or bucket mixers hold cans at an angle to horizontal resulting in a vigorous "corner-over-corner" mixing action
- Can Tumblers rotate pails continuously in one direction. Pail mixers do NOT shake or oscillate cans.
- Accept steel or plastic cans and pails:
- Up to 12.5" (31.75 cm) diameter
- 4.5" to 16.5" (12 to 42 cm) tall
- Includes typical 5-gallon cans
- Capacity: 100 Lb. (45.5 kg) per can
- Tumbling speed: 23 RPM (19 RPM on 50Hz models)
Technical Specification
| Model # | Rotates | Motor | Volts AC | Hz | Phase | Full Load Amp Draw | Domestic Ship Weight | |
|---|---|---|---|---|---|---|---|---|
| 2-305-1 | 1 or 2 cans at 23 RPM | 1/4 HP | TEFC with 1 to 60 minute timer | 115V | 60 | 1 | 5.0 | 205 Lb. (93 kg) |
| 2-305-1-50 | 1 or 2 cans at 19 RPM | 1/2 HP | TEFC | 110 / 220V | 50 | 1 | 7.2 / 3.6 | 205 Lb. (93 kg) |
| 2-305-1-230 | 1 or 2 cans at 23 RPM | 1/4 HP | TEFC | 208 / 230V | 60 | 1 | 3.0 / 2.5 | 205 Lb. (93 kg) |
| 2-305-3 | 1 or 2 cans at 23 RPM | 1/4 HP | TEFC | 208-230 / 460V | 60 | 3 | 1.7 / 1.3 / .7 | 205 Lb. (93 kg) |
| 2-305-3-50 | 1 or 2 cans at 19 RPM | 1/4 HP | TENV | 190 / 380V | 50 | 3 | 1.2 / .6 | 205 Lb. (93 kg) |
| 2-305-575 | 1 or 2 cans at 23 RPM | 1/2 HP | TEFC | 575V | 60 | 3 | .8 | 205 Lb. (93 kg) |
| 2-305-A | 1 or 2 cans at 23 RPM | 1/4 HP | Air motor ** | - | - | - | - | 190 Lb. (86 kg) |
| 2-305-E1 | 1 or 2 cans at 23 RPM | 1/4 HP | Explosion proof * | 115 / 208-230V | 60 | 1 | 5.0 / 2.6-2.5 | 210 Lb. (95 kg) |
| 2-305-E1-50 | 1 or 2 cans at 19 RPM | 1/4 HP | Explosion proof * | 110 / 220V | 50 | 1 | 5.6 / 2.8 | 210Lb. (95 kg) |
| 2-305-E3 | 1 or 2 cans at 23 RPM | 1/4 HP | Explosion proof * | 208-230 / 460V | 60 | 3 | 1.4-1.3 / .7 | 231 Lb. (105 kg) |
| 2-305-E3-50 | 1 or 2 cans at 19 RPM | 1/2 HP | Explosion proof * | 230 / 400V | 50 | 3 | 1.7 / 1.0 | 231 Lb. (105 kg) |
| 2-305-E575 | 1 or 2 cans at 23 RPM | 1/2 HP | Explosion proof * | 575V | 60 | 3 | .7 | 231 Lb. (105 kg) |
| 1-305-1 | 1 can at 23 RPM | 1/4 HP | TEFC with 1 to 60 minute timer | 115V | 60 | 1 | 5.0 | 175 Lb. (80 kg) |
| 1-305-1-50 | 1 can at 19 RPM | 1/2 HP | TEFC | 110 / 220V | 50 | 1 | 7.2 / 3.6 | 175 Lb. (80 kg) |
| 1-305-1-230 | 1 can at 23 RPM | 1/4 HP | TEFC | 208 / 230V | 60 | 1 | 3.0 / 2.5 | 175 Lb. (80 kg) |
| 1-305-3 | 1 can at 23 RPM | 1/4 HP | TEFC | 208-230 / 460V | 60 | 3 | 1.7 / 1.3 / .7 | 155 Lb. (70 kg) |
| 1-305-3-50 | 1 can at 19 RPM | 1/4 HP | TENV | 190 / 380V | 50 | 3 | 1.2 / .6 | 155 Lb. (70 kg) |
| 1-305-575 | 1 can at 23 RPM | 1/2 HP | TEFC | 575V | 60 | 3 | .8 | 155 Lb. (70 kg) |
| 1-305-A | 1 can at 23 RPM | 1/4 HP | Air motor ** | - | - | - | - | 155 Lb. (70 kg) |
| 1-305-E1 | 1 can at 23 RPM | 1/4 HP | Explosion proof * | 115 / 208-230V | 60 | 1 | 5.0 / 2.6-2.5 | 180 Lb. (82 kg) |
| 1-305-E1-50 | 1 can at 19 RPM | 1/4 HP | Explosion proof * | 110 / 220V | 50 | 1 | 5.6 / 2.8 | 180 Lb. (82 kg) |
| 1-305-E3 | 1 can at 23 RPM | 1/4 HP | Explosion proof * | 208-230 / 460V | 60 | 3 | 1.4-1.3 / .7 | 180 Lb. (82 kg) |
| 1-305-E3-50 | 1 can at 19 RPM | 1/2 HP | Explosion proof * | 230 / 400V | 50 | 3 | 1.7 / 1.0 | 180 Lb. (82 kg) |
| 1-305-E575 | 1 can at 23 RPM | 1/2 HP | Explosion proof * | 575V | 60 | 3 | .7 | 180 Lb. (82 kg) |
