3 Ton RAZE Wall-Mounted Tie Rod Style Jib Crane

The right equipment. The right support. Fast.
In Stock / Ships Fast
Expert Support Available
Industrial-Grade Equipment
Freight Support Available
List Price $4,110.00 Your Cost $3,288.00
More Information
Manufacture Part Number WBJ-6000-8
Brand RAZE
Estimated Ship Time 2-3 Weeks
Only %1 left
Add a new review
Please select required fields below in order to add item(s) to your cart:
Ready to Order?
Buy from Crane Depot with confidence.
Call Now for Expert Help
Estimated Ship Time: 2-3 Weeks

Shipping & Delivery

We make equipment shipping fast, reliable, and hassle-free.

  • Ships directly from authorized warehouse locations
  • Nationwide freight shipping available
  • Shipment tracking is provided after order dispatch
  • Expedited shipping options available upon request

Chainhoist coordinates every shipment carefully to ensure your equipment arrives safely, securely, and on time.

This jib is designed for use in bays, along walls, in work cells, or as a supplement to overhead cranes or gantry systems. Similar to a cantilever style crane but is more economical if headroom is not an issue.

Additional features and benefits include:

- 180 degree rotation is standard

- Fittings are cast iron with roller bearings and zerk fittings for easy lubrication.

- Easily adjustable tip of boom

- Capacities 1/8 to 12 ton with span lengths up to 35 feet.

Product Resources
File Icon Raze Wall Bracket Tie Rod Jib Crane Spec Sheet (470.75 kB)
Technical Specification
All
1 TON
2 TON
3 TON
1/2 TON
1/4 TON
Capacity Span (S) Model Number R M F I Tie Rod Diameter Thrust & Pull
1/4 TON 8' WBJ-500-8 2'-9" 1'-3" 3" 6" 2 @ 1" 1780#
1/4 TON 10' WBJ-500-10 3'-0" 1'-6" 3" 6" 2 @ 1" 2060#
1/4 TON 12' WBJ-500-12 3'-9" 1'-9" 3" 6" 2 @ 1" 2000#
1/4 TON 14' WBJ-500-14 4'-0" 2'-0" 3" 6" 2 @ 1" 2200#
1/4 TON 16' WBJ-500-16 5'-0" 2'-0" 3" 6" 2 @ 1" 2020#
1/4 TON 18' WBJ-500-18 5'-6" 2'-3" 3" 6" 2 @ 1" 2070#
1/4 TON 20' WBJ-500-20 6'-0" 2'-6" 3" 6" 2 @ 1" 2120#
1/2 TON 8' WBJ-1000-8 2'-9" 1'-3" 3" 6" 2 @ 1" 3550#
1/2 TON 10' WBJ-1000-10 3'-0" 1'-6" 3" 6" 2 @ 1" 4120#
1/2 TON 12' WBJ-1000-12 3'-9" 1'-9" 3" 6" 2 @ 1" 3990#
1/2 TON 14' WBJ-1000-14 4'-6" 2'-0" 3" 6" 2 @ 1" 3900#
1/2 TON 16' WBJ-1000-16 5'-6" 2'-0" 3" 6" 2 @ 1" 3670#
1/2 TON 18' WBJ-1000-18 6'-0" 2'-3" 3" 8" 2 @ 1" 3800#
1/2 TON 20' WBJ-1000-20 6'-6" 2'-6" 3" 8" 2 @ 1" 3900#
1 TON 8' WBJ-2000-8 2'-9" 1'-3" 3" 6" 2 @ 1" 7100#
1 TON 10' WBJ-2000-10 3'-3" 1'-6" 3" 6" 2 @ 1" 7600#
1 TON 12' WBJ-2000-12 4'-0" 1'-9" 3" 6" 2 @ 1" 7480#
1 TON 14' WBJ-2000-14 4'-9" 2'-3" 3" 8" 2 @ 1" 7390#
1 TON 16' WBJ-2000-16 5'-6" 2'-6" 3" 8" 2 @ 1" 7330#
1 TON 18' WBJ-2000-18 6'-3" 2'-6" 3" 8" 2 @ 1" 7280#
1 TON 20' WBJ-2000-20 7'-0" 3'-0" 3" 10" 2 @ 1" 7250#
2 TON 8' WBJ-4000-8 2'-9" 1'-3" 4" 8" 2 @ 1 1/4" 14200#
2 TON 10' WBJ-4000-10 3'-3" 1'-6" 4" 8" 2 @ 1 1/4" 15200#
2 TON 12' WBJ-4000-12 4'-0" 1'-9" 4" 10" 2 @ 1 1/4" 15000#
2 TON 14' WBJ-4000-14 4'-9" 2'-0" 4" 10" 2 @ 1 1/4" 14800#
2 TON 16' WBJ-4000-16 5'-6" 2'-3" 4" 10" 2 @ 1 1/4" 14700#
2 TON 18' WBJ-4000-18 6'-3" 2'-6" 4" 12" 2 @ 1 1/4" 14600#
2 TON 20' WBJ-4000-20 7'-0" 3'-0" 4" 12" 2 @ 1 1/4" 14500#
3 TON 8' WBJ-6000-8 2'-9" 1'-3" 4-1/2" 12" 2 @ 1 1/2" 21300#
3 TON 10' WBJ-6000-10 3'-3" 1'-6" 4-1/2" 12" 2 @ 1 1/2" 22800#
3 TON 12' WBJ-6000-12 4'-0" 1'-9" 4-1/2" 12" 2 @ 1 1/2" 22500#
3 TON 14' WBJ-6000-14 4'-9" 2'-0" 4-1/2" 12" 2 @ 1 1/2" 22200#
3 TON 16' WBJ-6000-16 5'-6" 2'-3" 4-1/2" 12" 2 @ 1 1/2" 22050#
3 TON 18' WBJ-6000-18 6'-3" 2'-6" 4-1/2" 12" 2 @ 1 1/2" 21900#
3 TON 20' WBJ-6000-20 7'-0" 3'-0" 4-1/2" 12" 2 @ 1 1/2" 21800#
Capacity Span (S) Model Number R M F I Tie Rod Diameter Thrust & Pull
1 TON 8' WBJ-2000-8 2'-9" 1'-3" 3" 6" 2 @ 1" 7100#
1 TON 10' WBJ-2000-10 3'-3" 1'-6" 3" 6" 2 @ 1" 7600#
1 TON 12' WBJ-2000-12 4'-0" 1'-9" 3" 6" 2 @ 1" 7480#
1 TON 14' WBJ-2000-14 4'-9" 2'-3" 3" 8" 2 @ 1" 7390#
1 TON 16' WBJ-2000-16 5'-6" 2'-6" 3" 8" 2 @ 1" 7330#
1 TON 18' WBJ-2000-18 6'-3" 2'-6" 3" 8" 2 @ 1" 7280#
1 TON 20' WBJ-2000-20 7'-0" 3'-0" 3" 10" 2 @ 1" 7250#
Capacity Span (S) Model Number R M F I Tie Rod Diameter Thrust & Pull
2 TON 8' WBJ-4000-8 2'-9" 1'-3" 4" 8" 2 @ 1 1/4" 14200#
2 TON 10' WBJ-4000-10 3'-3" 1'-6" 4" 8" 2 @ 1 1/4" 15200#
2 TON 12' WBJ-4000-12 4'-0" 1'-9" 4" 10" 2 @ 1 1/4" 15000#
2 TON 14' WBJ-4000-14 4'-9" 2'-0" 4" 10" 2 @ 1 1/4" 14800#
2 TON 16' WBJ-4000-16 5'-6" 2'-3" 4" 10" 2 @ 1 1/4" 14700#
2 TON 18' WBJ-4000-18 6'-3" 2'-6" 4" 12" 2 @ 1 1/4" 14600#
2 TON 20' WBJ-4000-20 7'-0" 3'-0" 4" 12" 2 @ 1 1/4" 14500#
Capacity Span (S) Model Number R M F I Tie Rod Diameter Thrust & Pull
3 TON 8' WBJ-6000-8 2'-9" 1'-3" 4-1/2" 12" 2 @ 1 1/2" 21300#
3 TON 10' WBJ-6000-10 3'-3" 1'-6" 4-1/2" 12" 2 @ 1 1/2" 22800#
3 TON 12' WBJ-6000-12 4'-0" 1'-9" 4-1/2" 12" 2 @ 1 1/2" 22500#
3 TON 14' WBJ-6000-14 4'-9" 2'-0" 4-1/2" 12" 2 @ 1 1/2" 22200#
3 TON 16' WBJ-6000-16 5'-6" 2'-3" 4-1/2" 12" 2 @ 1 1/2" 22050#
3 TON 18' WBJ-6000-18 6'-3" 2'-6" 4-1/2" 12" 2 @ 1 1/2" 21900#
3 TON 20' WBJ-6000-20 7'-0" 3'-0" 4-1/2" 12" 2 @ 1 1/2" 21800#
Capacity Span (S) Model Number R M F I Tie Rod Diameter Thrust & Pull
1/2 TON 8' WBJ-1000-8 2'-9" 1'-3" 3" 6" 2 @ 1" 3550#
1/2 TON 10' WBJ-1000-10 3'-0" 1'-6" 3" 6" 2 @ 1" 4120#
1/2 TON 12' WBJ-1000-12 3'-9" 1'-9" 3" 6" 2 @ 1" 3990#
1/2 TON 14' WBJ-1000-14 4'-6" 2'-0" 3" 6" 2 @ 1" 3900#
1/2 TON 16' WBJ-1000-16 5'-6" 2'-0" 3" 6" 2 @ 1" 3670#
1/2 TON 18' WBJ-1000-18 6'-0" 2'-3" 3" 8" 2 @ 1" 3800#
1/2 TON 20' WBJ-1000-20 6'-6" 2'-6" 3" 8" 2 @ 1" 3900#
Capacity Span (S) Model Number R M F I Tie Rod Diameter Thrust & Pull
1/4 TON 8' WBJ-500-8 2'-9" 1'-3" 3" 6" 2 @ 1" 1780#
1/4 TON 10' WBJ-500-10 3'-0" 1'-6" 3" 6" 2 @ 1" 2060#
1/4 TON 12' WBJ-500-12 3'-9" 1'-9" 3" 6" 2 @ 1" 2000#
1/4 TON 14' WBJ-500-14 4'-0" 2'-0" 3" 6" 2 @ 1" 2200#
1/4 TON 16' WBJ-500-16 5'-0" 2'-0" 3" 6" 2 @ 1" 2020#
1/4 TON 18' WBJ-500-18 5'-6" 2'-3" 3" 6" 2 @ 1" 2070#
1/4 TON 20' WBJ-500-20 6'-0" 2'-6" 3" 6" 2 @ 1" 2120#
Reviews
Write Your Own Review
You're reviewing:3 Ton RAZE Wall-Mounted Tie Rod Style Jib Crane

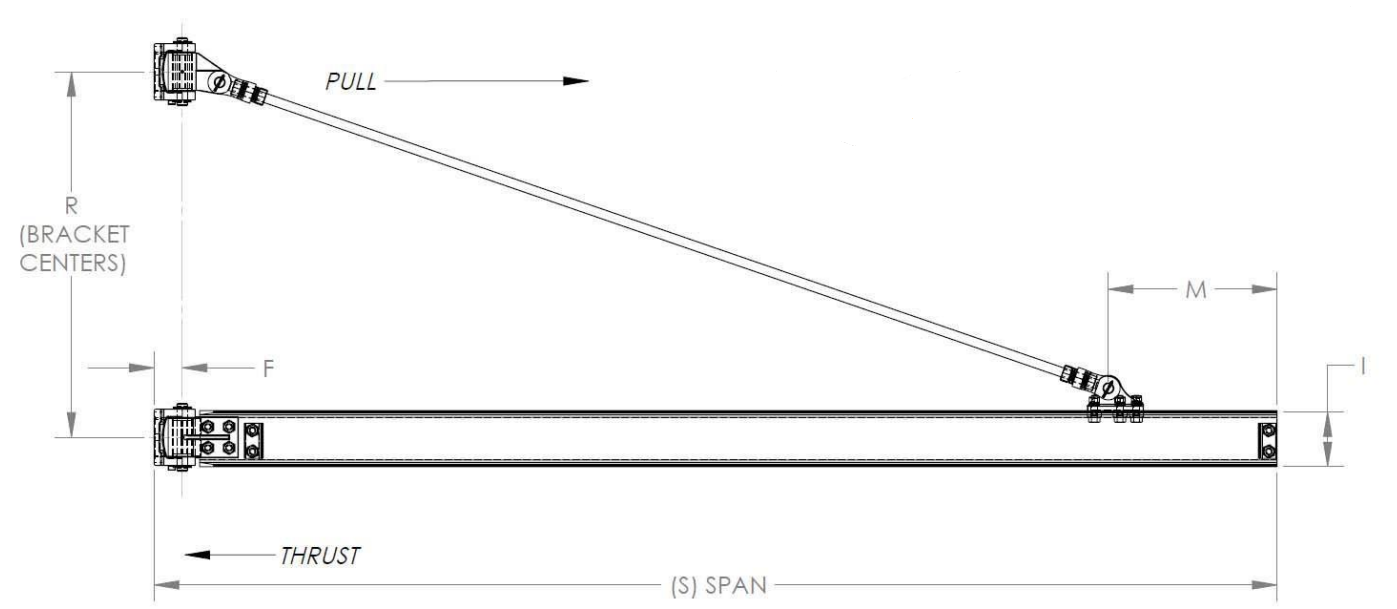

Dimension Guide
Dimension
