20 Ton Caldwell Heavy Duty 'C' Hook

The right equipment. The right support. Fast.
In Stock / Ships Fast
Expert Support Available
Industrial-Grade Equipment
Freight Support Available
More Information
Manufacture Part Number 82-20-60
Brand Caldwell
Add a new review
Ready to Order?
Buy from Crane Depot with confidence.

BUILT CUSTOM

CALL NOW FOR QUOTE

Estimated Ship Time:

Shipping & Delivery

We make equipment shipping fast, reliable, and hassle-free.

  • Ships directly from authorized warehouse locations
  • Nationwide freight shipping available
  • Shipment tracking is provided after order dispatch
  • Expedited shipping options available upon request

Chainhoist coordinates every shipment carefully to ensure your equipment arrives safely, securely, and on time.

Heavy Duty C-Hook PRODUCT FEATURES:

  • Designed for heavy duty applications.

  • High tensile alloy steel plate reduces physical size and weight.

  • Counter balanced to hang level when empty.

  • Inside radius on hooks avoid coil edge contact.

  • Curved coil saddle is standard.

  • Guide handles for ease of hook positioning.

  • Handles a wide range of coil widths.

  • Available with optional padding for additional coil protection.

  • Complies with ASME standards.

Product Resources
File Icon Model 82 Heavy Duty C Hook Spec sheet (237.98 kB)
Technical Specification
All
5
10
15
20
25
30
40
50
7-1/2
Model Number Capacity (tons) Dimensions (inches) Weight (lbs.)
Coil Width Throat Lifting Arm HR Headroom Bail Dimensions
Max. Min. Length L Depth D Width W Opening Thk. T
A B C
82-5-36 5 36 24 24 30 5-5/16 4 37-3/8 1-1/2 4 7 1-1/4 420
82-5-48 5 48 30 24 39 6-1/8 4 38 1-1/2 4 7 1-1/4 584
82-5-60 5 60 36 24 48 6-9/16 4 38-1/2 1-1/2 4 7 1-1/4 680
82-7 1/2-36 7-1/2 36 24 24 30 5-5/8 4 37-1/2 1-1/2 4 7 1-1/2 615
82-7 1/2-48 7-1/2 48 30 24 39 6-5/16 4 38-1/4 1-1/2 4 7 1-1/2 774
82-7 1/2-60 7-1/2 60 36 24 48 6-15/16 4 39 1-1/2 4 7 1-1/2 942
82-10-48 10 48 30 24 39 7-1/4 4 41-1/4 2 5 9 1-3/4 928
82-10-60 10 60 36 24 48 7-1/2 4 41-3/8 2 5 9 1-3/4 1295
82-10-72 10 72 42 24 57 7-1/4 4 42-1/2 2 5 9 1-3/4 1616
82-15-48 15 48 30 30 39 7-1/4 4 47-7/8 2 5 9 1-3/4 1450
82-15-60 15 60 36 30 48 8 4 48 2 5 9 1-3/4 1824
82-15-72 15 72 42 30 57 8-3/4 4 48-3/4 2 5 9 1-3/4 2227
82-20-60 20 60 36 30 48 9-1/8 4 52-1/8 2-1/4 6 12 2 2175
82-20-72 20 72 42 30 57 10 4 52-5/16 2-1/4 6 12 2 2625
82-25-60 25 60 36 34 48 9 4 57-3/4 2-1/2 6 14 2-1/4 2820
82-25-72 25 72 42 34 57 9-3/4 4 58-1/2 2-1/2 6 14 2-1/4 3570
82-30-60 30 60 36 34 48 9-7/8 4 58-3/4 2-3/4 6 14 2-1/2 3180
82-30-72 30 72 42 34 57 10-5/8 4 59-3/8 2-3/4 6 14 2-1/2 3800
82-40-72 40 72 42 38 57 11 11-3/4 68 3-1/4 7 18 3 5350
82-50-84 50 84 48 45 64-1/2 13 6 71-7/8 3-3/4 7 18 3 7470
Model Number Capacity (tons) Dimensions (inches) Weight (lbs.)
Coil Width Throat Lifting Arm HR Headroom Bail Dimensions
Max. Min. Length L Depth D Width W Opening Thk. T
A B C
82-5-36 5 36 24 24 30 5-5/16 4 37-3/8 1-1/2 4 7 1-1/4 420
82-5-48 5 48 30 24 39 6-1/8 4 38 1-1/2 4 7 1-1/4 584
82-5-60 5 60 36 24 48 6-9/16 4 38-1/2 1-1/2 4 7 1-1/4 680
Model Number Capacity (tons) Dimensions (inches) Weight (lbs.)
Coil Width Throat Lifting Arm HR Headroom Bail Dimensions
Max. Min. Length L Depth D Width W Opening Thk. T
A B C
82-10-48 10 48 30 24 39 7-1/4 4 41-1/4 2 5 9 1-3/4 928
82-10-60 10 60 36 24 48 7-1/2 4 41-3/8 2 5 9 1-3/4 1295
82-10-72 10 72 42 24 57 7-1/4 4 42-1/2 2 5 9 1-3/4 1616
Model Number Capacity (tons) Dimensions (inches) Weight (lbs.)
Coil Width Throat Lifting Arm HR Headroom Bail Dimensions
Max. Min. Length L Depth D Width W Opening Thk. T
A B C
82-15-48 15 48 30 30 39 7-1/4 4 47-7/8 2 5 9 1-3/4 1450
82-15-60 15 60 36 30 48 8 4 48 2 5 9 1-3/4 1824
82-15-72 15 72 42 30 57 8-3/4 4 48-3/4 2 5 9 1-3/4 2227
Model Number Capacity (tons) Dimensions (inches) Weight (lbs.)
Coil Width Throat Lifting Arm HR Headroom Bail Dimensions
Max. Min. Length L Depth D Width W Opening Thk. T
A B C
82-20-60 20 60 36 30 48 9-1/8 4 52-1/8 2-1/4 6 12 2 2175
82-20-72 20 72 42 30 57 10 4 52-5/16 2-1/4 6 12 2 2625
Model Number Capacity (tons) Dimensions (inches) Weight (lbs.)
Coil Width Throat Lifting Arm HR Headroom Bail Dimensions
Max. Min. Length L Depth D Width W Opening Thk. T
A B C
82-25-60 25 60 36 34 48 9 4 57-3/4 2-1/2 6 14 2-1/4 2820
82-25-72 25 72 42 34 57 9-3/4 4 58-1/2 2-1/2 6 14 2-1/4 3570
Model Number Capacity (tons) Dimensions (inches) Weight (lbs.)
Coil Width Throat Lifting Arm HR Headroom Bail Dimensions
Max. Min. Length L Depth D Width W Opening Thk. T
A B C
82-30-60 30 60 36 34 48 9-7/8 4 58-3/4 2-3/4 6 14 2-1/2 3180
82-30-72 30 72 42 34 57 10-5/8 4 59-3/8 2-3/4 6 14 2-1/2 3800
Model Number Capacity (tons) Dimensions (inches) Weight (lbs.)
Coil Width Throat Lifting Arm HR Headroom Bail Dimensions
Max. Min. Length L Depth D Width W Opening Thk. T
A B C
82-40-72 40 72 42 38 57 11 11-3/4 68 3-1/4 7 18 3 5350
Model Number Capacity (tons) Dimensions (inches) Weight (lbs.)
Coil Width Throat Lifting Arm HR Headroom Bail Dimensions
Max. Min. Length L Depth D Width W Opening Thk. T
A B C
82-50-84 50 84 48 45 64-1/2 13 6 71-7/8 3-3/4 7 18 3 7470
Model Number Capacity (tons) Dimensions (inches) Weight (lbs.)
Coil Width Throat Lifting Arm HR Headroom Bail Dimensions
Max. Min. Length L Depth D Width W Opening Thk. T
A B C
82-7 1/2-36 7-1/2 36 24 24 30 5-5/8 4 37-1/2 1-1/2 4 7 1-1/2 615
82-7 1/2-48 7-1/2 48 30 24 39 6-5/16 4 38-1/4 1-1/2 4 7 1-1/2 774
82-7 1/2-60 7-1/2 60 36 24 48 6-15/16 4 39 1-1/2 4 7 1-1/2 942
Reviews
Write Your Own Review
You're reviewing:20 Ton Caldwell Heavy Duty 'C' Hook

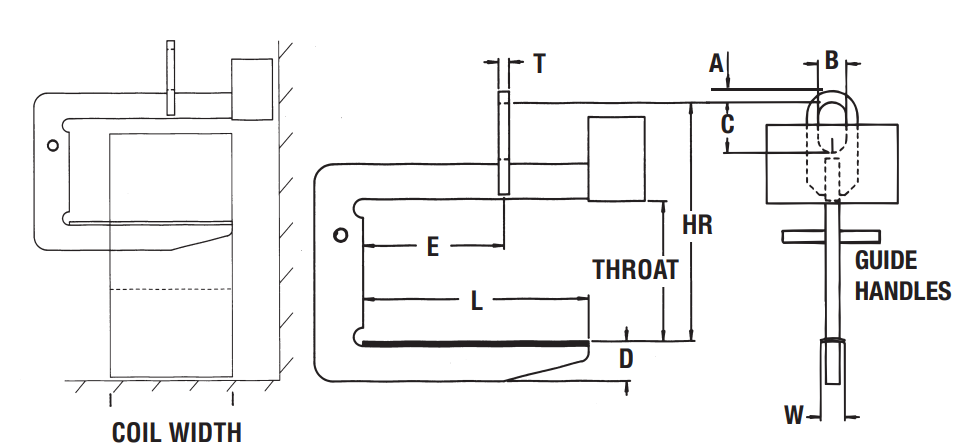

Dimension Guide
Dimension
