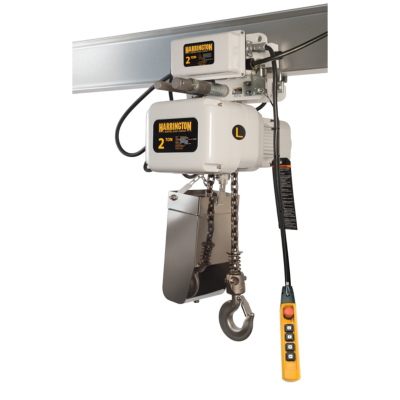

2 Ton Harrington NERM-FG Series 14 FPM 230/460v Three Phase

The right equipment. The right support. Fast.

In Stock / Ships Fast

Expert Support Available

Industrial-Grade Equipment

Freight Support Available

List Price $16,908.00 Your Cost $13,512.00

More Information
Manufacture Part Number	NERM020L-L/S-FG
Brand	Harrington
Estimated Ship Time	2-4 Business Days

Add a new review

Please select required fields below in order to add item(s) to your cart:

CHOOSE VOLTAGE

LIFT

TROLLEY OPTIONS

Ready to Order?

Buy from Crane Depot with confidence.

Qty

Call Now for Expert Help

Estimated Ship Time: 2-4 Business Days

We make equipment shipping fast, reliable, and hassle-free.

Ships directly from authorized warehouse locations
Nationwide freight shipping available
Shipment tracking is provided after order dispatch
Expedited shipping options available upon request

Chainhoist coordinates every shipment carefully to ensure your equipment arrives safely, securely, and on time.

Product Overview

*Need a Push Trolley? - View the NERP-FG Series

Harrington's NER food grade electric hoists were carefully designed for food processing or food packaging applications. The hoists offer RoHS compliance, and its food grade lubricants comply with FDA standards, making them the perfect choice for any facility where incidental contact with product is a concern. This three phase electric hoist includes all of the top quality features of our standard NER hoist and can be coupled with a push, geared or motorized trolley.

Standard Food Grade Features Include:

1/4 - 2 Ton capacities
Food grade oil and grease
Voltages 208-230/460-3-60
White epoxy paint for hoists, trolleys, hooks and suspenders
Nickel-plated load chain
Lubricants comply with FDA standards
ASME H4 classification
Features stainless steel and nickel-plated components
2 Ton Motorized Trolley Flange Width- 3.23"-6.02" Flange Width

Available Options Include:

Stainless steel bottom hook
Stainless steel trolley wheels
Stainless steel side guide rollers
Nickel-plated shaft and suspender
Stainless steel or plastic chain container
NEMA 4 pendant
Pendant cover
Stainless steel chain spring and limiting plate
Stainless steel cushion rubber
Nickel-plated stopper

Product Resources

Technical Specification

All

1/2

1/4

Cap. (Tons)	Product Code	Std. Lift (ft)	Push Button Cord L (ft)	Lifting Speed (ft/min)	Traversing Speed (ft/min)	Lifting Motor 3 Phase 60 Hz			Traversing Motor 3 Phase 60 Hz			Flange Width Adjustability B (in)		Net Weight (lbs)
						Output (Hp)	Rated Current (amps)		Output (Hp)	Rated Current (amps)		Flange Width Adjustability B (in)		Net Weight (lbs)
						Output (Hp)	@208-230V	@460V	Output (Hp)	@208-230V	@460V	Standard	Optional	NER	ER
1/4	NERP003L-FG	10	8.2	15	0.75	3.4	1.7	2.28 to 4.00	4.01 to 8.00 OR 8.01 to 12.00	43.3	6.0 x 1	82	0.54
1/2	NERP005L-FG	10	8.2	15	0.75	3.4	1.7	2.28 to 4.00	4.01 to 8.00 OR 8.01 to 12.00	43.3	6.0 x 1	82	0.54
1	NERP010L-FG	10	8.2	14	1.2	4.8	2.5	2.28 to 5.00	5.01 to 8.00 OR 8.01 to 12.00	51.2	7.7 x 1	121	0.89
2	NERP020L-FG	10	8.2	14	2.4	8.6	4.2	3.23 to 6.02	6.03 to 12.00	59.1	10.2 x 1	190	1.6

Cap. (Tons)	Product Code	Std. Lift (ft)	Push Button Cord L (ft)	Lifting Speed (ft/min)	Traversing Speed (ft/min)	Lifting Motor 3 Phase 60 Hz			Traversing Motor 3 Phase 60 Hz			Flange Width Adjustability B (in)		Net Weight (lbs)
						Output (Hp)	Rated Current (amps)		Output (Hp)	Rated Current (amps)		Flange Width Adjustability B (in)		Net Weight (lbs)
						Output (Hp)	@208-230V	@460V	Output (Hp)	@208-230V	@460V	Standard	Optional	NER	ER
1	NERP010L-FG	10	8.2	14	1.2	4.8	2.5	2.28 to 5.00	5.01 to 8.00 OR 8.01 to 12.00	51.2	7.7 x 1	121	0.89

Cap. (Tons)	Product Code	Std. Lift (ft)	Push Button Cord L (ft)	Lifting Speed (ft/min)	Traversing Speed (ft/min)	Lifting Motor 3 Phase 60 Hz			Traversing Motor 3 Phase 60 Hz			Flange Width Adjustability B (in)		Net Weight (lbs)
						Output (Hp)	Rated Current (amps)		Output (Hp)	Rated Current (amps)		Flange Width Adjustability B (in)		Net Weight (lbs)
						Output (Hp)	@208-230V	@460V	Output (Hp)	@208-230V	@460V	Standard	Optional	NER	ER
2	NERP020L-FG	10	8.2	14	2.4	8.6	4.2	3.23 to 6.02	6.03 to 12.00	59.1	10.2 x 1	190	1.6

Cap. (Tons)	Product Code	Std. Lift (ft)	Push Button Cord L (ft)	Lifting Speed (ft/min)	Traversing Speed (ft/min)	Lifting Motor 3 Phase 60 Hz			Traversing Motor 3 Phase 60 Hz			Flange Width Adjustability B (in)		Net Weight (lbs)
						Output (Hp)	Rated Current (amps)		Output (Hp)	Rated Current (amps)		Flange Width Adjustability B (in)		Net Weight (lbs)
						Output (Hp)	@208-230V	@460V	Output (Hp)	@208-230V	@460V	Standard	Optional	NER	ER
1/2	NERP005L-FG	10	8.2	15	0.75	3.4	1.7	2.28 to 4.00	4.01 to 8.00 OR 8.01 to 12.00	43.3	6.0 x 1	82	0.54

Cap. (Tons)	Product Code	Std. Lift (ft)	Push Button Cord L (ft)	Lifting Speed (ft/min)	Traversing Speed (ft/min)	Lifting Motor 3 Phase 60 Hz			Traversing Motor 3 Phase 60 Hz			Flange Width Adjustability B (in)		Net Weight (lbs)
						Output (Hp)	Rated Current (amps)		Output (Hp)	Rated Current (amps)		Flange Width Adjustability B (in)		Net Weight (lbs)
						Output (Hp)	@208-230V	@460V	Output (Hp)	@208-230V	@460V	Standard	Optional	NER	ER
1/4	NERP003L-FG	10	8.2	15	0.75	3.4	1.7	2.28 to 4.00	4.01 to 8.00 OR 8.01 to 12.00	43.3	6.0 x 1	82	0.54
