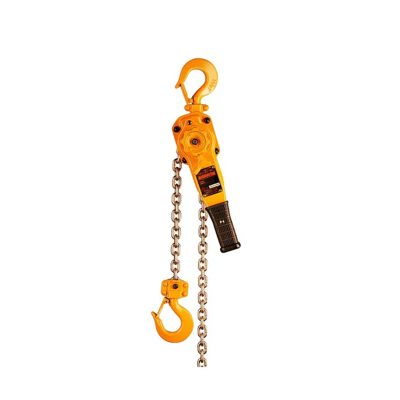

2 3/4 Ton Harrington LB Series Lever Hoist
The right equipment. The right support. Fast.
In Stock / Ships Fast
Expert Support Available
Industrial-Grade Equipment
Freight Support Available
List Price
$1,080.00
Your Cost
$972.00
| Manufacture Part Number | LB028 |
|---|---|
| Brand | Harrington |
| Estimated Ship Time | 1-2 Business Days |
Only %1 left
Estimated Ship Time:
1-2 Business Days
Harrington's LB lever hoists combine easy operation with a compact, low headroom design that easily handles real-world demands. Rated the number 1 selling lever hoist in the U.S., these hoists can be used horizontally, vertically, inverted or at any other load angle and have the strength to get the job done.
Additional features and benefits include:
- Capacity 3/4 ton - 9 ton
- Compact design makes it a perfect fit for use in tight quarters
- Steel body is more durable yet lighter weight than the die cast aluminum models
- Revolutionary freewheeling offers one handed operation
- 360 degree handle rotation and pivot & swivel top hook for easy rigging
- Single load chain through 3 tons
Technical Specification
All
1
2
3
6
9
3/4
1 1/2
2 3/4
| Cap. (Tons) | Product Code | Headroom C (in) | Std. Lift (ft) | Pull to Lift Load* (lbs) | a (in) | b (in) | D* (in) | e (in) | f (in) | g (in) | Load Chain Diameter (mm) x Chain Fall Lines | Net Weight (lbs) | Shipping Weight Approx. (lbs) | Weight for Additional One Foot of Lift (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3/4 | LB008 | 11.0 | 5 | 54 (36) | 5.7 | 4.7 | 9.6 (14.4) | 3.8 | 1.6 | 0.9 | 5.6 x 1 | 13 | 14 | 0.5 |
| 1 | LB010 | 11.8 | 5 | 72 (46) | 5.7 | 4.7 | 9.6 (14.4) | 3.8 | 1.1 | 0.9 | 5.6 x 1 | 13 | 14 | 0.5 |
| 1 1/2 | LB015 | 13.2 | 5 | 64 (45) | 6.3 | 5.0 | 10.4 (14.4) | 3.9 | 1.5 | 1.3 | 7.1 x 1 | 18 | 19 | 0.7 |
| 2 | LB020 | 14.8 | 5 | 59 (42) | 6.8 | 5.9 | 10.4 (14.4) | 4.0 | 1.8 | 1.4 | 8.8 x 1 | 25 | 26 | 1.1 |
| 2 3/4 | LB028 | 14.8 | 5 | 81 (57) | 6.8 | 5.9 | 10.4 (14.4) | 4.0 | 1.8 | 1.4 | 8.8 x 1 | 25 | 26 | 1.1 |
| 3 | LB030 | 15.6 | 5 | 69 | 6.8 | 6.3 | 16.3 (16.9) | 4.4 | 1.8 | 1.5 | 10.0 x 1 | 33 | 35 | 1.5 |
| 6 | LB060 | 21.3 | 5 | 72 | 7.5 | 8.5 | 16.3 (16.9) | 4.4 | 2.3 | 2.0 | 10.0 x 2 | 58 | 60 | 3.2 |
| 9 | LB090 | 26.8 | 5 | 78 | 7.5 | 12.0 | 16.3 (16.9) | 4.4 | 4.1 | 2.9 | 10.0 x 3 | 89 | 93 | 4.7 |
| Cap. (Tons) | Product Code | Headroom C (in) | Std. Lift (ft) | Pull to Lift Load* (lbs) | a (in) | b (in) | D* (in) | e (in) | f (in) | g (in) | Load Chain Diameter (mm) x Chain Fall Lines | Net Weight (lbs) | Shipping Weight Approx. (lbs) | Weight for Additional One Foot of Lift (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | LB010 | 11.8 | 5 | 72 (46) | 5.7 | 4.7 | 9.6 (14.4) | 3.8 | 1.1 | 0.9 | 5.6 x 1 | 13 | 14 | 0.5 |
| Cap. (Tons) | Product Code | Headroom C (in) | Std. Lift (ft) | Pull to Lift Load* (lbs) | a (in) | b (in) | D* (in) | e (in) | f (in) | g (in) | Load Chain Diameter (mm) x Chain Fall Lines | Net Weight (lbs) | Shipping Weight Approx. (lbs) | Weight for Additional One Foot of Lift (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 | LB020 | 14.8 | 5 | 59 (42) | 6.8 | 5.9 | 10.4 (14.4) | 4.0 | 1.8 | 1.4 | 8.8 x 1 | 25 | 26 | 1.1 |
| Cap. (Tons) | Product Code | Headroom C (in) | Std. Lift (ft) | Pull to Lift Load* (lbs) | a (in) | b (in) | D* (in) | e (in) | f (in) | g (in) | Load Chain Diameter (mm) x Chain Fall Lines | Net Weight (lbs) | Shipping Weight Approx. (lbs) | Weight for Additional One Foot of Lift (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3 | LB030 | 15.6 | 5 | 69 | 6.8 | 6.3 | 16.3 (16.9) | 4.4 | 1.8 | 1.5 | 10.0 x 1 | 33 | 35 | 1.5 |
| Cap. (Tons) | Product Code | Headroom C (in) | Std. Lift (ft) | Pull to Lift Load* (lbs) | a (in) | b (in) | D* (in) | e (in) | f (in) | g (in) | Load Chain Diameter (mm) x Chain Fall Lines | Net Weight (lbs) | Shipping Weight Approx. (lbs) | Weight for Additional One Foot of Lift (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 | LB060 | 21.3 | 5 | 72 | 7.5 | 8.5 | 16.3 (16.9) | 4.4 | 2.3 | 2.0 | 10.0 x 2 | 58 | 60 | 3.2 |
| Cap. (Tons) | Product Code | Headroom C (in) | Std. Lift (ft) | Pull to Lift Load* (lbs) | a (in) | b (in) | D* (in) | e (in) | f (in) | g (in) | Load Chain Diameter (mm) x Chain Fall Lines | Net Weight (lbs) | Shipping Weight Approx. (lbs) | Weight for Additional One Foot of Lift (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 9 | LB090 | 26.8 | 5 | 78 | 7.5 | 12.0 | 16.3 (16.9) | 4.4 | 4.1 | 2.9 | 10.0 x 3 | 89 | 93 | 4.7 |
| Cap. (Tons) | Product Code | Headroom C (in) | Std. Lift (ft) | Pull to Lift Load* (lbs) | a (in) | b (in) | D* (in) | e (in) | f (in) | g (in) | Load Chain Diameter (mm) x Chain Fall Lines | Net Weight (lbs) | Shipping Weight Approx. (lbs) | Weight for Additional One Foot of Lift (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3/4 | LB008 | 11.0 | 5 | 54 (36) | 5.7 | 4.7 | 9.6 (14.4) | 3.8 | 1.6 | 0.9 | 5.6 x 1 | 13 | 14 | 0.5 |
| Cap. (Tons) | Product Code | Headroom C (in) | Std. Lift (ft) | Pull to Lift Load* (lbs) | a (in) | b (in) | D* (in) | e (in) | f (in) | g (in) | Load Chain Diameter (mm) x Chain Fall Lines | Net Weight (lbs) | Shipping Weight Approx. (lbs) | Weight for Additional One Foot of Lift (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 1/2 | LB015 | 13.2 | 5 | 64 (45) | 6.3 | 5.0 | 10.4 (14.4) | 3.9 | 1.5 | 1.3 | 7.1 x 1 | 18 | 19 | 0.7 |
| Cap. (Tons) | Product Code | Headroom C (in) | Std. Lift (ft) | Pull to Lift Load* (lbs) | a (in) | b (in) | D* (in) | e (in) | f (in) | g (in) | Load Chain Diameter (mm) x Chain Fall Lines | Net Weight (lbs) | Shipping Weight Approx. (lbs) | Weight for Additional One Foot of Lift (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 3/4 | LB028 | 14.8 | 5 | 81 (57) | 6.8 | 5.9 | 10.4 (14.4) | 4.0 | 1.8 | 1.4 | 8.8 x 1 | 25 | 26 | 1.1 |
