13 Ton Caldwell Bail Style Triangle Lifting Beam

The right equipment. The right support. Fast.
In Stock / Ships Fast
Expert Support Available
Industrial-Grade Equipment
Freight Support Available
More Information
Manufacture Part Number 20TB-13-2
Brand Caldwell
Add a new review
Ready to Order?
Buy from Crane Depot with confidence.

BUILT CUSTOM

CALL NOW FOR QUOTE

Estimated Ship Time: 3-4 Weeks

Shipping & Delivery

We make equipment shipping fast, reliable, and hassle-free.

  • Ships directly from authorized warehouse locations
  • Nationwide freight shipping available
  • Shipment tracking is provided after order dispatch
  • Expedited shipping options available upon request

Chainhoist coordinates every shipment carefully to ensure your equipment arrives safely, securely, and on time.

Bail Style Triangle Beam

Caldwell Triangle Beams provide a low headroom solution when a short span is all you need to make the connections between the load and the crane. Caldwell Triangle Beams are available in standard capacities from 13 to 149 tons and comply with ASME standards.

Product Features:
  • Low Headroom
  • Designed to ASME standards
Available Options: Call for pricing
  • Custom Capacities
  • Extra Spreads
  • Full Capacity Center Lift Points
  • Built-In Stand
  • Oblong with Top Shackle
  • Longer Spreads
  • Shorter Spreads
  • Various Rigging Options
Note: This product is considered custom and is not eligible to be returned.
Product Resources
File Icon Caldwell Triangle Beams Spec Sheet (581.84 kB)
Technical Specification
All
13
24
34
50
70
110
149
Capacity (tons) Model Number Spread (ft.) Headroom Bail Dimensions Shackle Dimensions Weight (lbs.) Beam Only Weight (lbs.) Beam& Shackles
A B C T O N
13 20TB-13-2 2 19.2 2.25 5 9 1.25 2.19 0.88 85 90
13 20TB-13-3 3 21 2.25 5 9 1.25 2.19 0.88 131 138
24 20TB-24-2 2 24.4 2.75 6 12 1.75 3.25 1.25 157 181
24 20TB-24-3 3 26.5 2.75 6 12 1.75 3.25 1.25 228 251
34 20TB-34-2 2 30.3 3.38 7 16 2 4.19 1.5 235 273
34 20TB-34-3 3 32.6 3.38 7 16 2 4.19 1.5 322 360
50 20TB-50-2 2 32 3.63 7 16 2.5 4.94 1.75 328 396
50 20TB-50-3 3 34.5 3.63 7 16 2.5 4.94 1.75 450 518
70 20TB-70-2 2 35.12 4 7 18 3 5.12 2 465 570
70 20TB-70-3 3 37.62 4 7 18 3 5.12 2 632 737
110 20TB-110-2 2 41.4 5.25 3.5 20 3.5 7.62 2.5 693 890
110 20TB-110-3 3 44.5 5.25 3.5 20 3.5 7.62 2.5 932 1129
149 20TB-149-2 2 46 5.63 9 22 4.5 9.87 3 992 1300
149 20TB-149-3 3 49.24 5.63 9 22 4.5 9.87 3 1327 1640
Capacity (tons) Model Number Spread (ft.) Headroom Bail Dimensions Shackle Dimensions Weight (lbs.) Beam Only Weight (lbs.) Beam& Shackles
A B C T O N
13 20TB-13-2 2 19.2 2.25 5 9 1.25 2.19 0.88 85 90
13 20TB-13-3 3 21 2.25 5 9 1.25 2.19 0.88 131 138
Capacity (tons) Model Number Spread (ft.) Headroom Bail Dimensions Shackle Dimensions Weight (lbs.) Beam Only Weight (lbs.) Beam& Shackles
A B C T O N
24 20TB-24-2 2 24.4 2.75 6 12 1.75 3.25 1.25 157 181
24 20TB-24-3 3 26.5 2.75 6 12 1.75 3.25 1.25 228 251
Capacity (tons) Model Number Spread (ft.) Headroom Bail Dimensions Shackle Dimensions Weight (lbs.) Beam Only Weight (lbs.) Beam& Shackles
A B C T O N
34 20TB-34-2 2 30.3 3.38 7 16 2 4.19 1.5 235 273
34 20TB-34-3 3 32.6 3.38 7 16 2 4.19 1.5 322 360
Capacity (tons) Model Number Spread (ft.) Headroom Bail Dimensions Shackle Dimensions Weight (lbs.) Beam Only Weight (lbs.) Beam& Shackles
A B C T O N
50 20TB-50-2 2 32 3.63 7 16 2.5 4.94 1.75 328 396
50 20TB-50-3 3 34.5 3.63 7 16 2.5 4.94 1.75 450 518
Capacity (tons) Model Number Spread (ft.) Headroom Bail Dimensions Shackle Dimensions Weight (lbs.) Beam Only Weight (lbs.) Beam& Shackles
A B C T O N
70 20TB-70-2 2 35.12 4 7 18 3 5.12 2 465 570
70 20TB-70-3 3 37.62 4 7 18 3 5.12 2 632 737
Capacity (tons) Model Number Spread (ft.) Headroom Bail Dimensions Shackle Dimensions Weight (lbs.) Beam Only Weight (lbs.) Beam& Shackles
A B C T O N
110 20TB-110-2 2 41.4 5.25 3.5 20 3.5 7.62 2.5 693 890
110 20TB-110-3 3 44.5 5.25 3.5 20 3.5 7.62 2.5 932 1129
Capacity (tons) Model Number Spread (ft.) Headroom Bail Dimensions Shackle Dimensions Weight (lbs.) Beam Only Weight (lbs.) Beam& Shackles
A B C T O N
149 20TB-149-2 2 46 5.63 9 22 4.5 9.87 3 992 1300
149 20TB-149-3 3 49.24 5.63 9 22 4.5 9.87 3 1327 1640
Reviews
Write Your Own Review
You're reviewing:13 Ton Caldwell Bail Style Triangle Lifting Beam

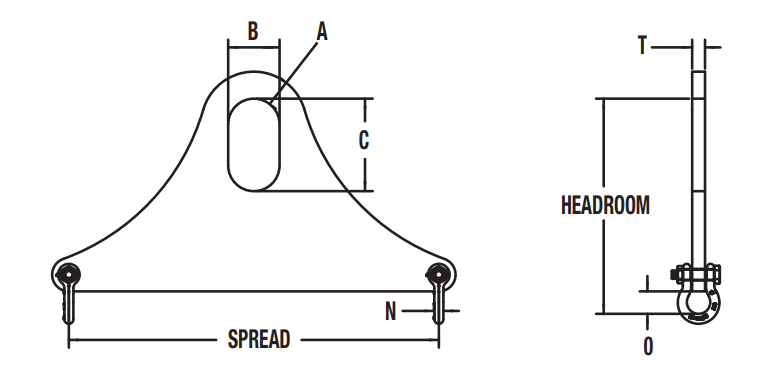

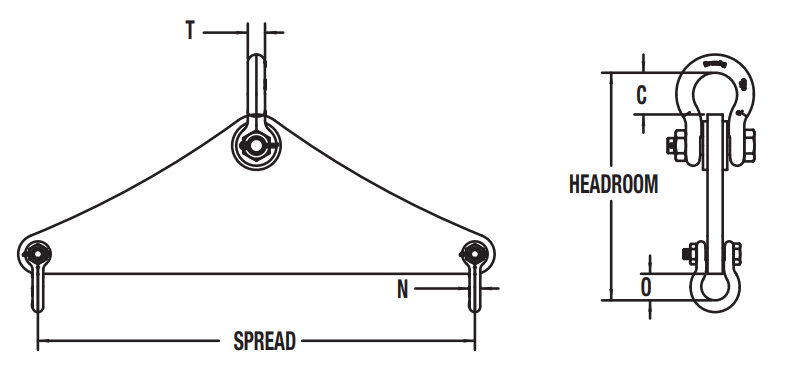

Dimension Guide
