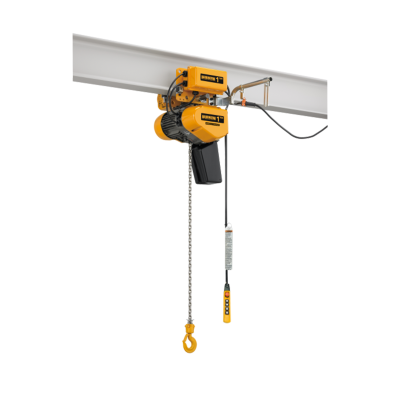

1/8 Ton Harrington SEQM Series 56/9 FPM 115/230v Single Phase
The right equipment. The right support. Fast.
In Stock / Ships Fast
Expert Support Available
Industrial-Grade Equipment
Freight Support Available
List Price
$8,465.00
Your Cost
$6,767.00
| Manufacture Part Number | SEQM001SD-SD |
|---|---|
| Brand | Harrington |
| Estimated Ship Time | 1-2 Business Days |
Estimated Ship Time:
1-2 Business Days
Harrington's unique SEQ model hoist is a DUAL SPEED VFD, 1-PHASE electric chain hoist with re-connectable 115/230V power. This hoist also includes a no-load high speed function that automatically increases hoist speed up to 130 percent when the load is less than 30 percent of working load limit. Mount the SEQ hoist to a PT push or GT geared trolley to transport any load. The SEQ hoist is a true REVOLUTION in SINGLE PHASE lifting!
SEQ, SEQP, SEQG capacities 1/8 Ton through 1 Ton
- 1-Phase voltage 115-1-60 / (220-230)-1-50/60 (reconnectable)
- Dual speed adjustable (6:1) VFD controls
- ASME H4 classification
- IP55 rated enclosure; IP65 pendant
- Lightweight and compact
- Heavy-duty fan cooled motor
- Chain Containers included with all hoists up to 20' of Lift
Technical Specification
All
1
1/2
1/4
1/8
| Cap. (Tons) | Product Code | Standard Lift (ft) | Push Button Cord L (ft) | Lifting Speed² (ft/min) High | Lifting Speed² (ft/min) Low | No Load High Speed | Rated Current (amps) Output (Hp) | Rated Current (amps) @115V | Rated Current (amps) @230V | Flange Width Adjustability³ B (in) Standard | Flange Width Adjustability³ B (in) Optional | Minimum²·⁴ Allow. Radius for Curve (in) | Load Chain Diameter (mm) x Chain Fall Lines | Net Weight⁴ (lbs) | Weight for Additional One Foot of Lift (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/8 | SEQ(P/G)001SD | 10 | 8.2 | 56 | 9.3 | 72 | 0.67 | 10.8 | 5.7 | 2.28 to 4.00 (2.28 to 5.00) | 4.01 to 8.00 (5.01 to 8.00) OR 8.01 to 12.00 | 43.3 (51.2) | 5.6 x 1 | 75 (97) | 0.48 |
| 1/4 | SEQ(P/G)003SD | 10 | 8.2 | 33 | 5.5 | 43 | 0.67 | 12.1 | 6.4 | 2.28 to 4.00 (2.28 to 5.00) | 4.01 to 8.00 (5.01 to 8.00) OR 8.01 to 12.00 | 43.3 (51.2) | 5.6 x 1 | 75 (99) | 0.48 |
| 1/2 | SEQ(P/G)005SD | 10 | 8.2 | 25 | 4.2 | 32 | 1.0 | 14.6 | 7.8 | 2.28 to 4.00 (2.28 to 5.00) | 4.01 to 8.00 (5.01 to 8.00) OR 8.01 to 12.00 | 43.3 (51.2) | 5.6 x 1 | 79 (104) | 0.48 |
| 1 | SEQ(P/G)010SD | 10 | 8.2 | 17 | 3.9 | 22 | 1.3 | 18.7 | 9.9 | 2.28 to 5.00 | 5.01 to 8.00 OR 8.01 to 12.00 | 51.2 | 7.1 x 1 | 108 (123) | 0.77 |
| Cap. (Tons) | Product Code | Standard Lift (ft) | Push Button Cord L (ft) | Lifting Speed² (ft/min) High | Lifting Speed² (ft/min) Low | No Load High Speed | Rated Current (amps) Output (Hp) | Rated Current (amps) @115V | Rated Current (amps) @230V | Flange Width Adjustability³ B (in) Standard | Flange Width Adjustability³ B (in) Optional | Minimum²·⁴ Allow. Radius for Curve (in) | Load Chain Diameter (mm) x Chain Fall Lines | Net Weight⁴ (lbs) | Weight for Additional One Foot of Lift (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | SEQ(P/G)010SD | 10 | 8.2 | 17 | 3.9 | 22 | 1.3 | 18.7 | 9.9 | 2.28 to 5.00 | 5.01 to 8.00 OR 8.01 to 12.00 | 51.2 | 7.1 x 1 | 108 (123) | 0.77 |
| Cap. (Tons) | Product Code | Standard Lift (ft) | Push Button Cord L (ft) | Lifting Speed² (ft/min) High | Lifting Speed² (ft/min) Low | No Load High Speed | Rated Current (amps) Output (Hp) | Rated Current (amps) @115V | Rated Current (amps) @230V | Flange Width Adjustability³ B (in) Standard | Flange Width Adjustability³ B (in) Optional | Minimum²·⁴ Allow. Radius for Curve (in) | Load Chain Diameter (mm) x Chain Fall Lines | Net Weight⁴ (lbs) | Weight for Additional One Foot of Lift (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2 | SEQ(P/G)005SD | 10 | 8.2 | 25 | 4.2 | 32 | 1.0 | 14.6 | 7.8 | 2.28 to 4.00 (2.28 to 5.00) | 4.01 to 8.00 (5.01 to 8.00) OR 8.01 to 12.00 | 43.3 (51.2) | 5.6 x 1 | 79 (104) | 0.48 |
| Cap. (Tons) | Product Code | Standard Lift (ft) | Push Button Cord L (ft) | Lifting Speed² (ft/min) High | Lifting Speed² (ft/min) Low | No Load High Speed | Rated Current (amps) Output (Hp) | Rated Current (amps) @115V | Rated Current (amps) @230V | Flange Width Adjustability³ B (in) Standard | Flange Width Adjustability³ B (in) Optional | Minimum²·⁴ Allow. Radius for Curve (in) | Load Chain Diameter (mm) x Chain Fall Lines | Net Weight⁴ (lbs) | Weight for Additional One Foot of Lift (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/4 | SEQ(P/G)003SD | 10 | 8.2 | 33 | 5.5 | 43 | 0.67 | 12.1 | 6.4 | 2.28 to 4.00 (2.28 to 5.00) | 4.01 to 8.00 (5.01 to 8.00) OR 8.01 to 12.00 | 43.3 (51.2) | 5.6 x 1 | 75 (99) | 0.48 |
| Cap. (Tons) | Product Code | Standard Lift (ft) | Push Button Cord L (ft) | Lifting Speed² (ft/min) High | Lifting Speed² (ft/min) Low | No Load High Speed | Rated Current (amps) Output (Hp) | Rated Current (amps) @115V | Rated Current (amps) @230V | Flange Width Adjustability³ B (in) Standard | Flange Width Adjustability³ B (in) Optional | Minimum²·⁴ Allow. Radius for Curve (in) | Load Chain Diameter (mm) x Chain Fall Lines | Net Weight⁴ (lbs) | Weight for Additional One Foot of Lift (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/8 | SEQ(P/G)001SD | 10 | 8.2 | 56 | 9.3 | 72 | 0.67 | 10.8 | 5.7 | 2.28 to 4.00 (2.28 to 5.00) | 4.01 to 8.00 (5.01 to 8.00) OR 8.01 to 12.00 | 43.3 (51.2) | 5.6 x 1 | 75 (97) | 0.48 |
