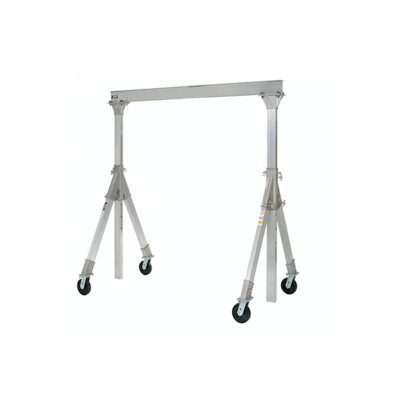

1/2 Ton RAZE AG Series Aluminum Gantry Crane- 12' Span (8'-12' Adjustable Height)
| Manufacture Part Number | RZAG-.5 |
|---|---|
| Brand | RAZE |
| Estimated Ship Time | 1-2 Business Days |
RAZE AG Series Aluminum Gantry Cranes are a lightweight and portable lifting solution. The height of the crane is adjustable, enabling you to lower the crane to clear doorways and overhead objects. Once clear, you can then raise the height for maximum lift. It can easily be pushed aside to maximize floorspace or dissembled for relocation.
RAZE adjustable height gantries are available in 1/2 to 3 ton with an option to add a hoist and trolley.
Qty 4- Swivel Locks Included
| Property | Value |
|---|---|
| Weight | 316lbs |
| Caster Dia. | 4.92" |
| Caster Height | 7.09" |
| QTY Swivel Locks | (4) Swivel Locks Included |
| QTY Wheel Locks | (4) Wheel Locks Included |
| Model# | RZAG-0.5-12 |
| Overall Span | 12'-0" [3658mm] |
| Clear Span | [10.69'] [3258mm] |
| Overall Height Min | 8.633' [2631mm] |
| Overall Height Max | 12.633' [3851mm] |
| Height Under Beam | [8'] [2438mm] |
| Height Under Beam to | [12'] [3658mm] |
| I-Beam Depth | 0.633' [193mm] |
| Tread | [6.01'] [1831.65mm] |
| Span Between Wheel Centers | 11.02' [3358mm] |
